Genius Q uPVC Universal Window Handle Inline Locking Espag Double Glazing 40mm

The Genius Q uPVC universal window handle is a stylish and elegant handle which boasts a high quality and ergonomic design. Genius are a leading manufacturer and retailer in window and door hardware. This handle is suitable for all window espag and shoot bolt mechanisms.

Information

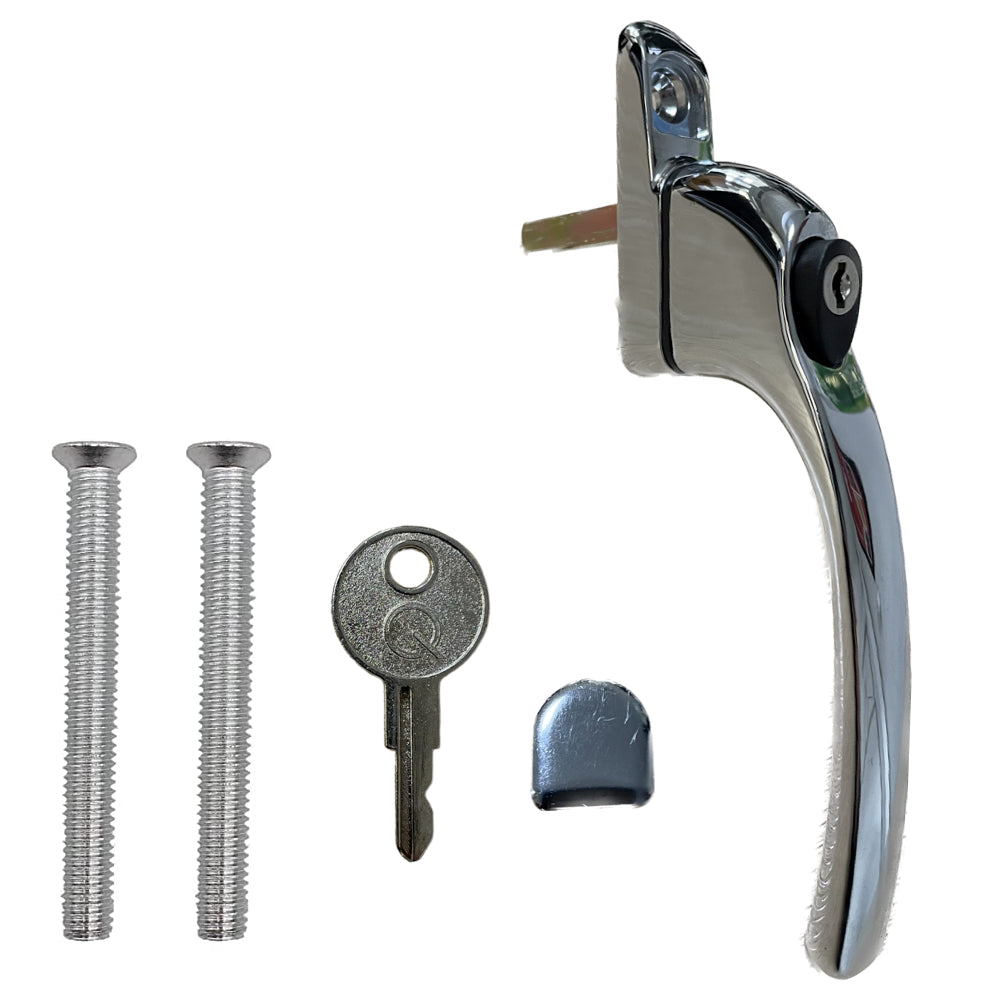

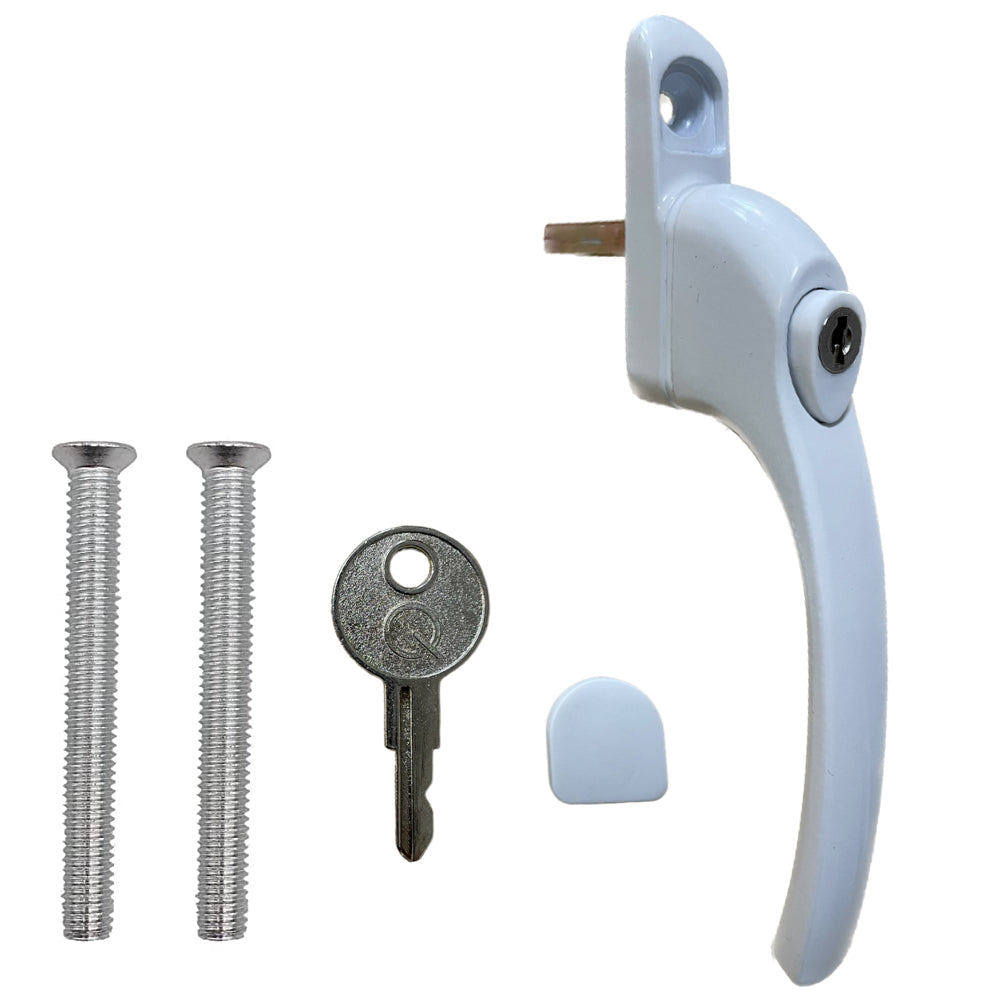

The Genius Q window handle is a universal window handle that fits both left and right hand openings It is a secure handle with a push button that can't be flicked open which also makes this a child safe handle window handle due to the locking push button functionality. The Genius Q uPVC Window Handle comes with 2 fixing screws, 1 key and 1 screw cover cap per window handle.

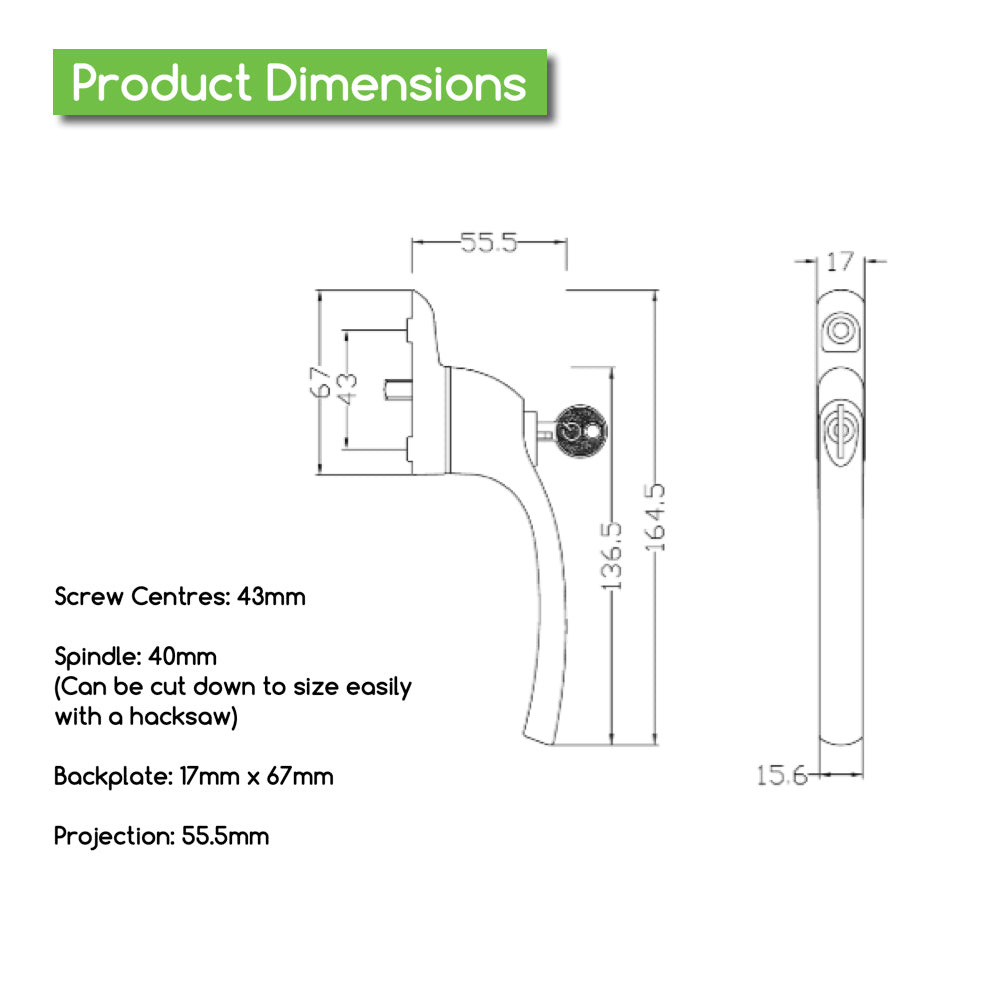

Dimensions

Screw Hole Centres: 43mm

Spindle Length: 40mm (Can easily be cut down to required size with a hacksaw)

Spindle Width: 7mm Square

Measuring

Your Handle Screw Hole Fixing Centres: Most espag handles are made to industry standards with 43mm screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle screw centres measure 43mm these handles will fit.

Handing

These handles are of the inline type (Non-handed), therefore they will replace both left and right hand handles.

Spindle Length

Remove the two screws fixing the handle to the window and measure from the base of the handle to the tip of the spindle.

Spindle Width

Although almost all espag window handle spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.

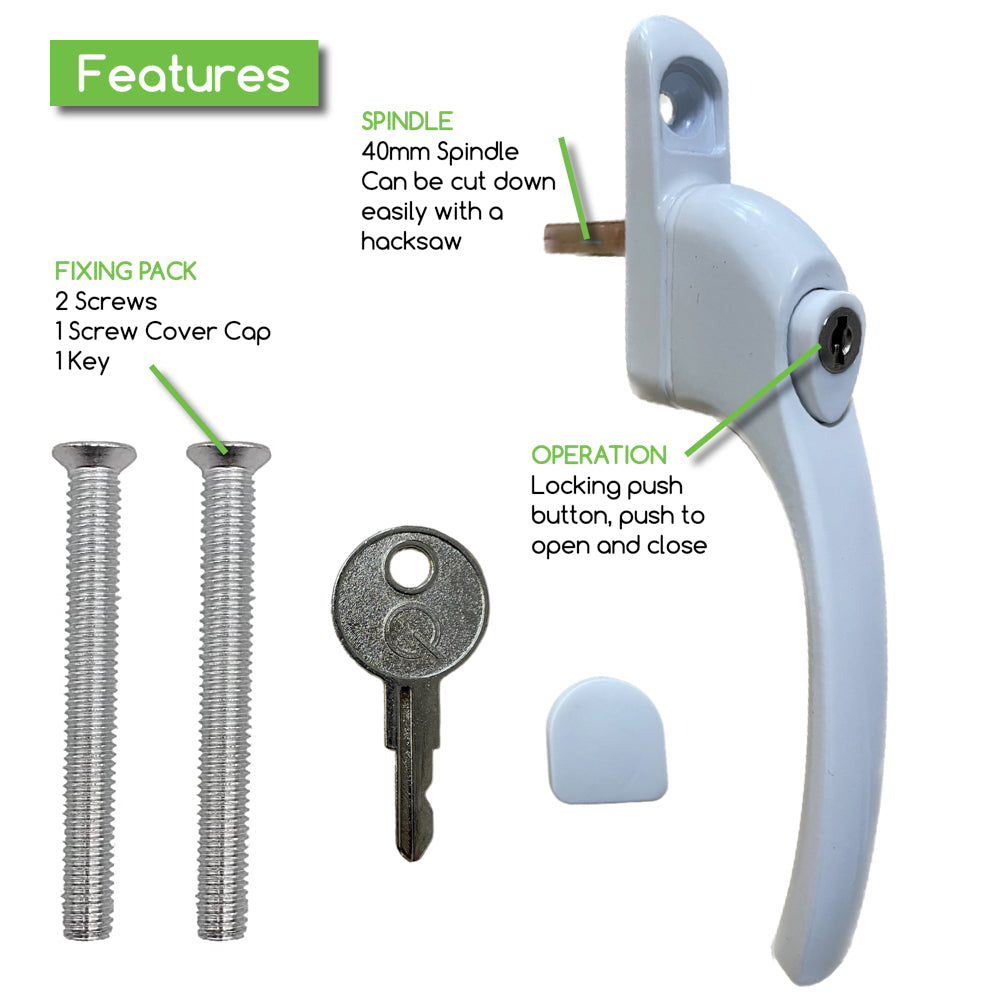

• CONTENTS INCLUDED: 1 White Window Handle, 1 Key, 2 Screws & 1 Screw Cover Cap
• UNIVERSAL: Fits both left and right hand openings and has a 40mm spindle that can be easily cut down to size if needed
• SUITABLE FOR: This window handle is suitable for all window espag and shoot bolt mechanisms
• SECURE: Lockable push button to open the window handle
