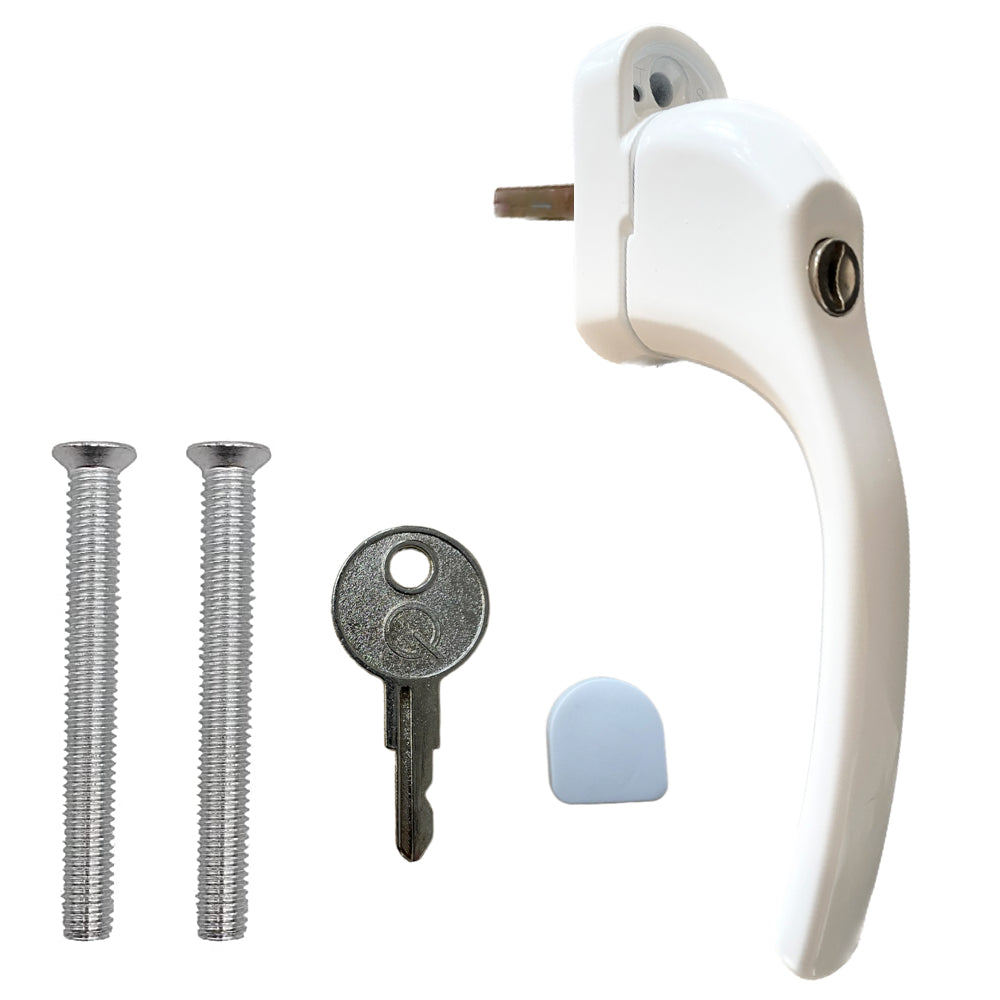

Genius Q Tilt & Turn Locking Window Handle (White)

The Genius Q tilt & turn locking window handle is a stylish and elegant handle which boasts a high quality and ergonomic design. Genius are a leading manufacturer and retailer in window and door hardware. This handle is suitable for all window tilt & turn mechanisms.

Information

Universal handle fits both left and right hand openings, 43mm screw hole centres, Comes with 2 fixing screws per handle Comes with 1 key & 2 screw cover cap per handle

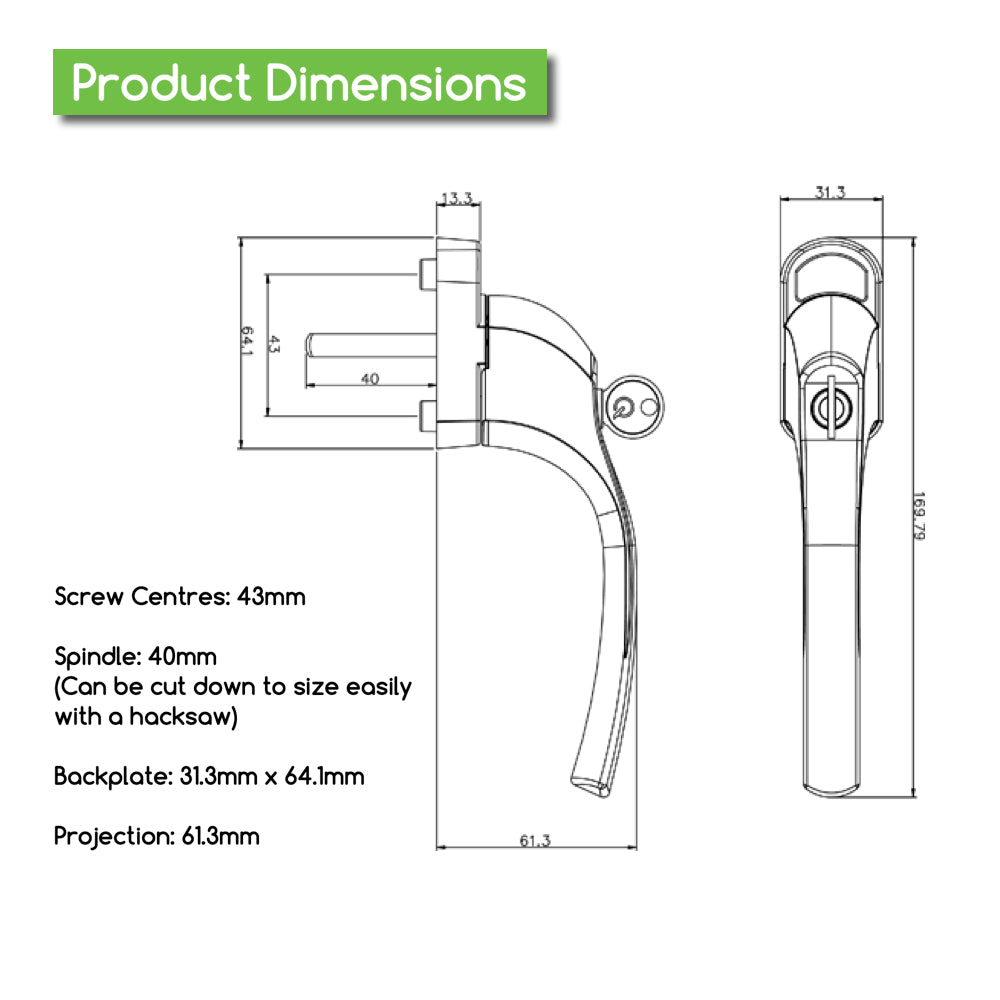

Dimensions

Screw Hole Centres: 43mm

Spindle Length: 40mm (Can easily be cut down to required size with a hacksaw)

Spindle Width: 7mm Square

Measuring Your Handle Screw Hole Fixing Centres:

Most tilt & turn handles are made to industry standards with 43mm screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:

These handles are of the inline type (Non-handed), therefore they will replace both left and right hand handles.

Spindle Length:

Remove the two screws fixing the handle to the window and measure from the base of the handle to the tip of the spindle.

Spindle Width:

Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.

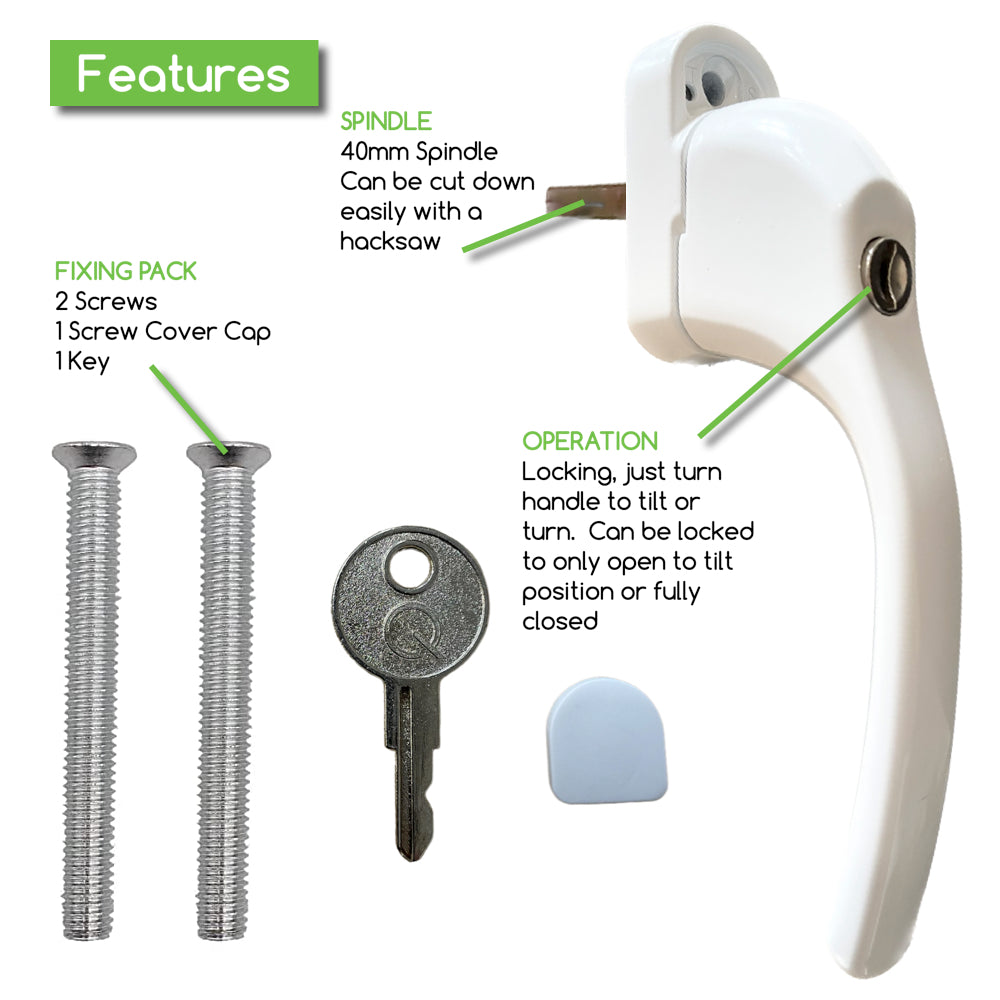

• CONTENTS INCLUDED: 1 White Tilt & Turn Handle, 1 Key, 2 Screws & 2 Screw Cover Caps
• UNIVERSAL: Fits both left and right hand openings and has a 40mm spindle that can be easily cut down to size if needed
• LOCKING: Locks in closed and tilt position
