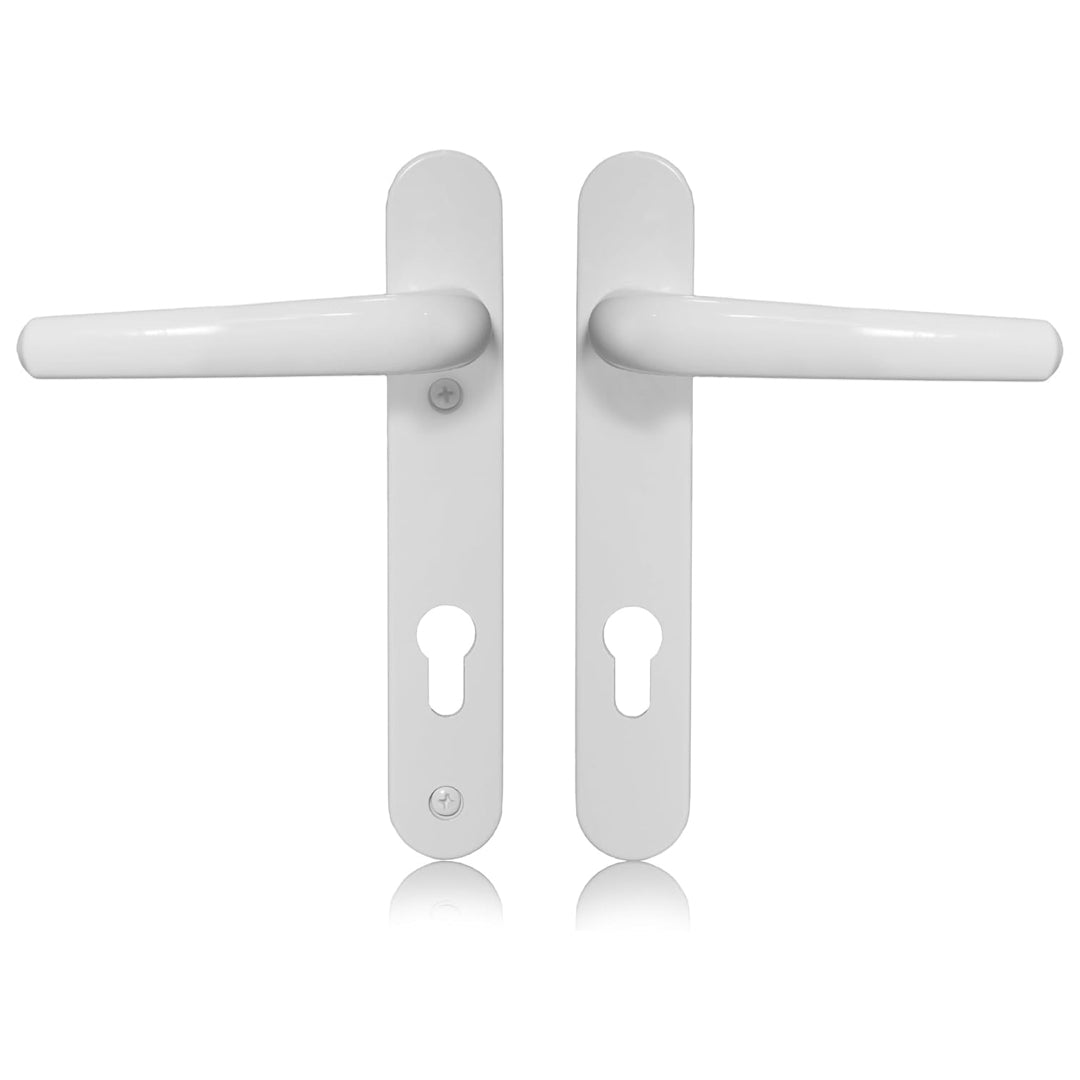

Genius® Upvc Door Handle Set, White Sprung Lever/Lever, 92mm PZ Centres, 122mm Screw Centres, 207mm x 30mm Backplate

The Genius Upvc Door Handle is contemporary and modern in appearance and has been cleverly designed to offer a very comfortable grip when operating. The Genius upvc door handle is robust in design and incorporates high quality springs to return the lever to 90 degrees.

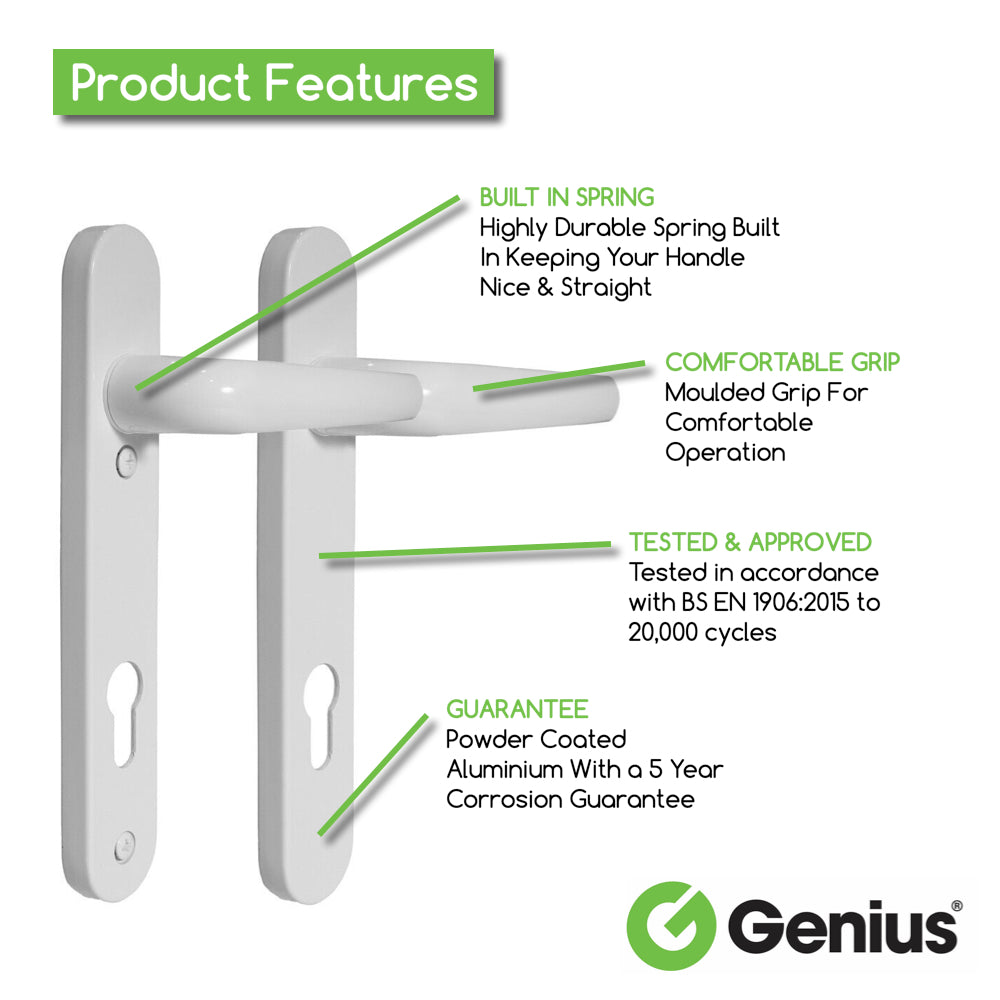

Features

Complete internal / external set supplied with all screws and spindles

Suits doors upto 72mm thick (screws and spindle need cutting down for doors thinner than 68mm)

Built in spring for returning the lever to the 90 degree position keeping your handle nice and straight

Moulded handle grip for comfortable operation

Tested to 20,000 cycles

5 year corrosion guarantee

Whats In The Pack?

1 Internal Door Handle

1 External Door Handle

1 8mm Spindle - 116mm Long

2 x M5 Screws - 82mm Long

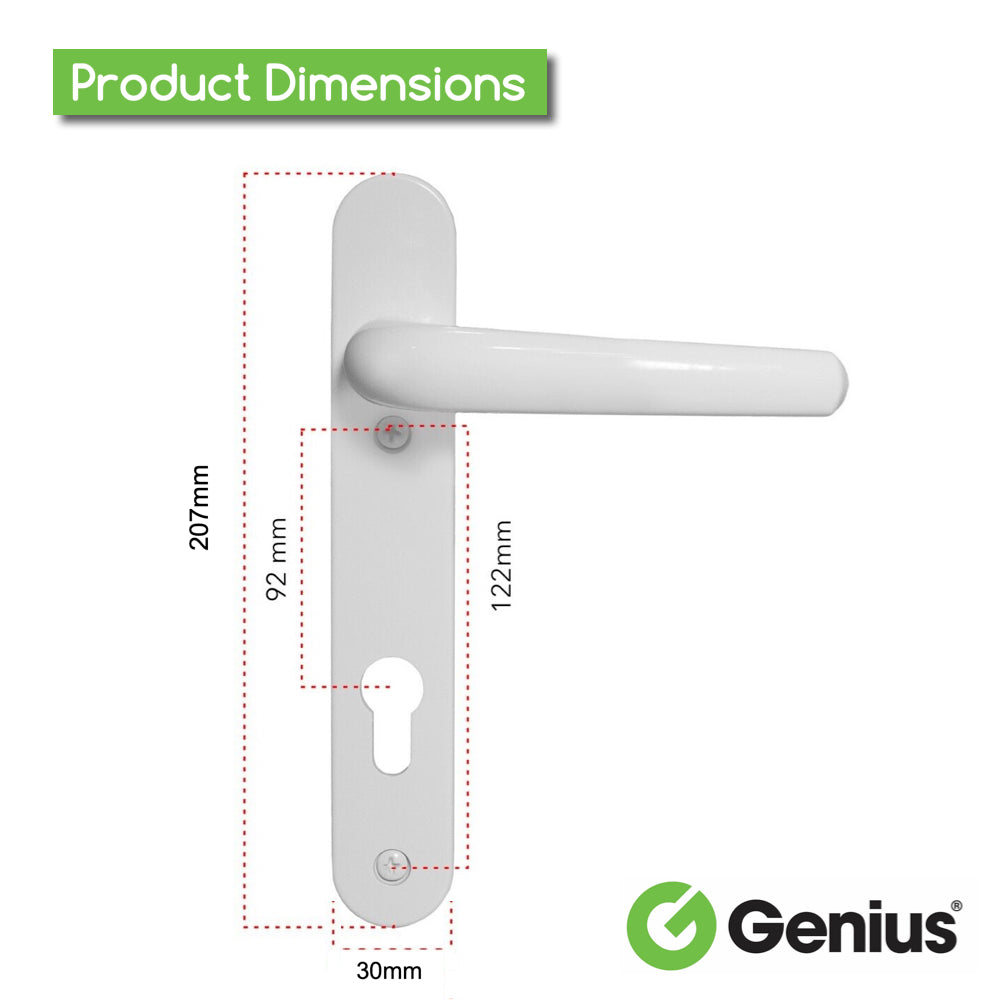

Dimensions

PZ Centres: 92mm critical dimension from centre of handle spindle to centre of barrel (the most common size)

Backplate length: 207mm

Backplate width: 30mm

Backplate depth: 12mm

Distance between screw hole centres: 122mm

Spindle Size: 8mm

NB. The most important measurements are the distance between screw holes centre to centre (this handle measures 122mm) and the distance from the centre of the handle spindle to the centre of the cylinder locking barrel (this handle measures 92mm).
